The world's leading double beam plug-in architecture,

through the unique integration of time and space to achieve group

 alternate insertionWith the working mode of installation, the plug-in

speed of single machine enters the high speed stage first (0.4-0.9 seconds)

The world's leading plug-in force programming and bending

technology to ensure stable insertion and component fixation.

Assembly line composition

1.It consists of 1 single host machine, feeder device (ribbon feeder, vibrating plate feeder, pipe)Type feeder, tray feeder).

2.Single machine equipped with 6 gripper/suction nozzle, using bilateral feeding arrangement, equipped with a number of feeder,Achieve efficient insertion.

3. Single machine equipped with PCB board MARK datum and component camera vision system to achieve high precision insertion.

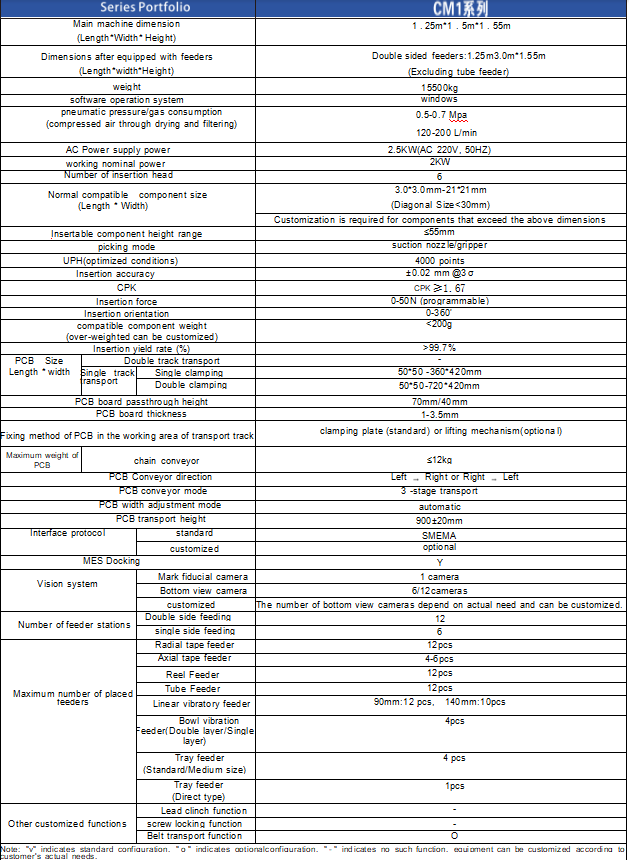

Main technical indicators

1. Time of single plug-in: 0.7-0.9 seconds.Under optimal insertion conditions, UPH can reach 5,500 points.

2.Packing yield: ≥99.5%, PCB board/vehicle compatible size:

Double track 50*50mm~720mm*420mm (length * width)
